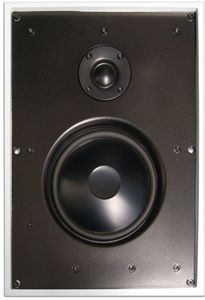

Name: James Loudspeaker® 6.5" White In-Wall Speaker
Brand: James Loudspeaker
SKU: 142618
Availability: OutOfStock

Default Dev Script Validation

<avb-header-after>  <avb-designer-block data-id="27" class="avb-grid avb-typography dsg-block-27-header-after"> <div class="avb-grid__column avb-grid__column--small-12 dsg-block-27__no-padding"> <avb-link class="avb-wrapper dsg-block-27-header-after__content" data-href="https://outlook.office365.com/owa/calendar/EdgeUPTechnologyExperienceCenter@Edgeuptech.com/bookings/s/wrfaKtTG7USBOAmQ6I-xXQ2" target="_blank">  <span class="dsg-block-27-header-after__headline dsg-tools-sub-heading dsg-tools-color-dark"> Schedule a 30-minute Tour of Our Design Center </span> </avb-link> </div> </avb-designer-block> </avb-header-after> <style> /* ==================== header-after (block-27-header-after) ==================== */ .dsg-block-27__no-padding { padding: 0; } .dsg-block-27-header-after__content, .dsg-block-27-header-after__content:visited, .dsg-block-27-header-after__content:focus { display: block; background-color: #e7e7e7; color: #231f20; text-align: center; padding: 0.55rem; } .dsg-block-27-header-after__headline { font-weight: 400; font-size: .6rem; line-height: 1.3; transition: .3s; } .dsg-block-27-header-after__headline:hover { background: -webkit-linear-gradient(left, #ae862e, #f7ef89, #d2ac47, #edc968); -webkit-background-clip: text; -webkit-text-fill-color: transparent; transition: .3s; } .dsg-block-27-header-after--bold { font-weight: 700; } @media screen and (min-width: 600px) { .dsg-block-27-header-after__headline { font-size: 1.15rem; } } @media screen and (min-width: 960px) {} @media screen and (min-width: 1280px) {} @media screen and (min-width: 1600px) {} </style>

Default Header After Global Promotions

142618/James Loudspeaker-62ASX.jpg

142618/9cf62fe7-64c3-4524-9424-fb8a76e6ad4d.pdf

142618/James Loudspeaker-62ASX1.jpg

<p>The 62ASX features high electromechanical coupling for pristine crystal clear audio output. 62ASX is a perfect solution for any environment, such as outside patio or inside home theater. Discreetly conceal the 62ASX with ease. Constructed from aircraft grade aluminum for strength and sonic performance. For outdoor/marine applications, order the 62ASXM.</p><p><strong>Specifications</strong></p><ul><li>Frequency Response: 70-22kHz±3dB</li><li>Impedance: 4 ohms</li><li>Sensitivity: 88dB 2.83V /1m</li><li>Power req.: 50 - 100 Watts RMS</li><li>Woofer: (1) 6.5” (165mm) Neodymium</li><li>Tweeter: (1) 1” (25.4mm) Dome Tweeter</li><li>Finishes: White paintable</li></ul>

James Loudspeaker® 2-Way Ultra-Slim All-Weather In-Wall Speaker with 55Hz-25kHz +/-3dB Frequency response and 25 - 100W power range

James Loudspeaker® 6.5" White In-Wall Speaker

The 62ASX, a power house of sound with Ultra Slim technology. Flush mounted and paintable design with you in mind. Amazing OFF-AXIAL power response, optimized for minimum harmonic distortion. Opposite polarity, inverse bucking dual Nd magnets for maximum “BL”.

General Specs
Product Weight (lbs.)	7
Frequency Response	70-22kHz
Color Finish Name	White
Outdoor Approved	Yes
RMS Power Handling (Watts)	100
Color	White
Impedance	4 Ohms
Maximum Power Handling (Watts)	100
Number of Speakers	1
Sensitivity	88
Speaker Type	In-Wall Speakers
Depth (in.)	2.5
Height (in.)	13.75
Width (in.)	9.88
Woofer Size	6.5"
