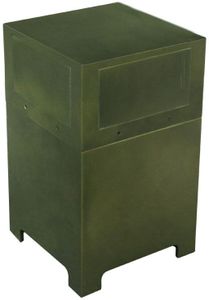

James Loudspeaker® Omni AT Series Omnidirectional 3-Way Bi-Amped All-Terrain Speaker


Model #:

OMNI109AT4

Model #: OMNI109AT4
141034
James Loudspeaker
$99,999.00

At a Glance

Product Dimensions 20.13"h x 12"w x 12"d

The Omni109AT4 allows a single enclosure to do the same job of four James 42AT All-Terrain satellite speakers and a 10” down-firing subwoofer, delivering the same legendary James landscape performance in a more compact above ground unit.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

James Loudspeaker designs and manufactures innovative solutions to provide the finest outdoor entertainment experience. The Omni109AT4 loudspeaker by James makes a great addition to the All-Terrain Series by offering 360-degrees of full range, crystal clear music. Ideal for any setting where above ground installation is preferred. Typical applications include rock scape areas or any other environment where traditional in ground satellite/subwoofer combinations cannot be installed, or large open seating venues such as outdoor theater that demand detailed and dynamic coverage. The James Loudspeaker Omni109AT4 delivers superb full range performance from a décor-friendly compact enclosure.

The Omni109AT4 allows a single enclosure to do the same job of four James 42AT All-Terrain satellite speakers and a 10” down-firing subwoofer, delivering the same legendary James landscape performance in a more compact above ground unit. The Omni109AT4 is constructed from 5052 marine aluminum enclosure and is available in 15 standard colors and unlimited custom finishes to allow seamless integration into all outdoor environments.

The units, assembled and tested in Napa, California from the highest quality materials come standard with a 3 year outdoor warranty.

Specifications

  • Frequency Response: 20Hz-20kHz +/-3dB
  • Sensitivity: 89dB 2.83V/1m
  • 70V Power: (Optional)
  • Woofer: 10" (254mm) Aluminum Cone
  • Mid: 4" (102mm) Aluminum Cone
  • Tweeter: 0.75" (19mm) Aluminum Cone
  • Enclosure: Marine Grade Aluminum
  • Finishes : Black Wrinkle, Bronze Wrinkle, Verde, Weathered Iron, Premium Finishes and Plating Available
  • Height: 20.125 in (511.17 mm)
  • Width: 12 in (304.80 mm)
  • Depth: 12 in (304.80 mm)

Nominal Impedance

  • Sats: 4 ohms
  • Sub: 4 ohms

Recommended Power Range

  • 50-250W (Sats)
  • 500-1000W (Sub)
Useful Documents
Specifications

General Specs

Manufacturer Warranty3 Year
Impedance4 Ohms
Number of Speakers1
Depth (in.)12
Height (in.)20.13
Width (in.)12
Woofer Size10"

Construction

Tweeter Composition:Aluminum
Midrange Size:4" x 4
Midrange Composition:Aluminum
Woofer Composition:Aluminum Cone

Other

Sold As:Each

Specifications

Sensitivity:89dB 2.83V/1m
Speaker Type:Subwoofer Speaker
