Product Overview

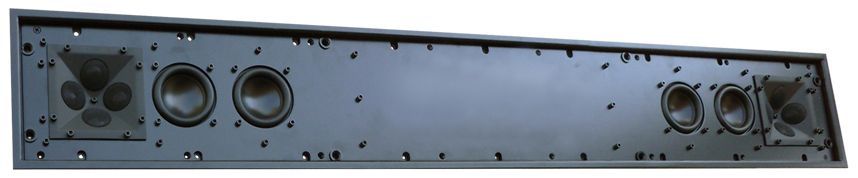

The QX3LR speaker raises the bar of home entertainment systems, setting new levels in sound output and wide frequency response. The stereo format of this bar features two individual systems to provide both left and right channels for full stereo sound in a single enclosure. Perfect for any home entertainment system, this versatile Sound Bar can be custom built to match each individual TV, providing seamless integration and elegant design as well as high quality audio. Equipped with high output, low-profile woofers and the signature ultra-wide dispersion QX style quad aluminum tweeter array, this low-visibility Sound Bar packs a powerful punch in a small package. Capable of reaching frequencies across a broad range down to below 70Hz, the QX3LR offers full range response with an impressive 89dB sensitivity.
The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a matching borderless stainless steel perforated grille which sits only 3/16” (5mm) off the wall or completely flush with the addition of a pre-construction board, this speaker is both sturdy and reliable, and can be elegantly integrated into each system, providing a subdued visual effect, designed to be as unobtrusive as possible.
Specifications
Frequency Response: 70Hz-24kHz +/-3dB
Nominal Impedance: 4 ohms
Sensitivity: 89db 2.83V/1m
Recommended Power Range: 25 - 100W
Woofer: (4) 3" (76mm) High Excursion
Tweeter: (8) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes: White Paintable Grille
Height: 7.269 in (184.63 mm)
Width: Custom
Depth: 4.125 in (104.77 mm)
Required Mounting Depth: 3.875 in (98.42 mm)
Grille Height: 7.269 in (184.63 mm)
