James LoudSystem® LCR Soundbar System

Product Overview

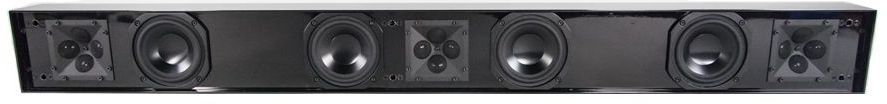

The SPL5QLCR Sound Bar sets new levels in sound output and wide frequency response. James Loudspeaker has taken their proprietary quad-tweeter technology from the BE reference series and scaled it down to a compact array of four 0.75” (19mm) aluminum dome tweeters to provide a wide dispersion angle. When combined with James’ high output 5.25” (133mm) woofers, the SPL5QLCR has a remarkable 89dB sensitivity with bass down below 65Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound. Designed as a left, right, and center channel, the SPL5QC is perfect for any 3 channel system application.

The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and colored stainless steel perforated grille, this Sound Bar mounts directly to any TV. James custom fits each Sound Bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect, designed to be as unobtrusive as possible. Also available for wall mounting or configurable for other custom applications, this Sound Bar combines high quality audio with elegant design for the perfect home entertainment solution.

Brackets ordered separately.

Specifications

Frequency Response: 65Hz-24kHz +/-3dB

Nominal Impedance: 4 ohms

Sensitivity: 89dB 2.83V/1m

Recommended Power Range: 25 - 150W

Woofer: (4) 5.25" (127mm) Aluminum

Tweeter: (12) .75" (19mm) Aluminum

Enclosure: Aircraft Marine Grade Aluminum

Finishes: Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver

Height: 5.75 in (146.05 mm)

Width: Custom

Depth: 3.5 in (88.90 mm)

*Sound Bar Speaker only, other items shown are for display purposes only.
